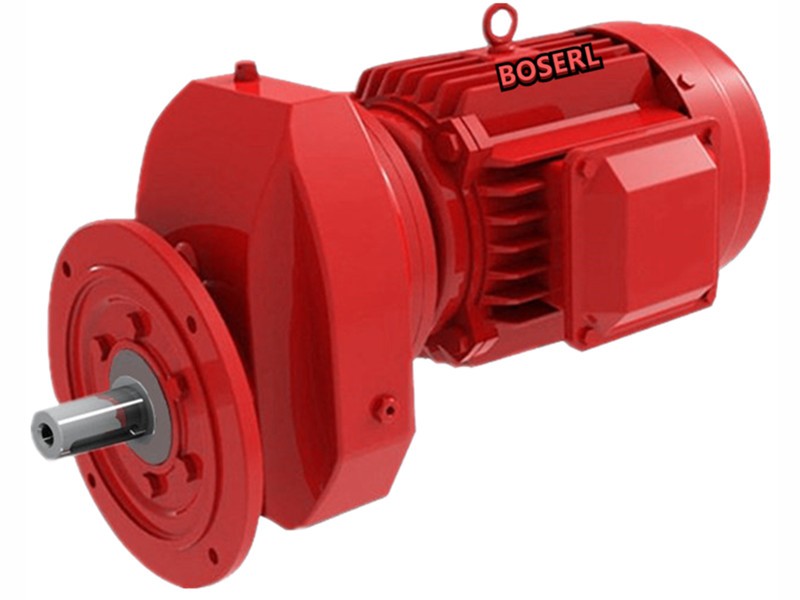

RXF77DV80S4詳細信息
RXF77DV80S4
訂購熱線：13360667204
關鍵詞：75千瓦三向減速器電機_RXF77DV80S4_RXF77DRN80S4
RXF77DV80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RXF77DV80S4 | 166.59 | 0.75KW | 8.60rpm | 830N.m | 52kg | 9810N | 1.00 |
| RXF77DV80S4 | 145.67 | 0.75KW | 9.80rpm | 725N.m | 52kg | 10700N | 1.15 |
| RXF77DV80S4 | 138.39 | 0.75KW | 10.0rpm | 690N.m | 52kg | 11000N | 1.20 |
| RXF77DV80S4 | 121.42 | 0.75KW | 12.0rpm | 605N.m | 52kg | 11500N | 1.35 |
| RXF77DV80S4 | 102.99 | 0.75KW | 14.0rpm | 510N.m | 52kg | 12000N | 1.60 |
| RXF77DV80S4 | 92.97 | 0.75KW | 15.0rpm | 460N.m | 52kg | 12200N | 1.75 |
| RXF77DV80S4 | 81.8 | 0.75KW | 18.0rpm | 405N.m | 52kg | 12500N | 2.00 |
| RXF77DV80S4 | 77.24 | 0.75KW | 19.0rpm | 385N.m | 52kg | 12500N | 2.10 |
| RXF77DV80S4 | 65.77 | 0.75KW | 22.0rpm | 325N.m | 52kg | 12700N | 2.50 |
| RXF77DV80S4 | 57.68 | 0.75KW | 25.0rpm | 285N.m | 52kg | 12800N | 2.80 |
| RXF77DV80S4 | 52.07 | 0.75KW | 28.0rpm | 255N.m | 52kg | 12900N | 3.20 |
| RXF77DV80S4 | 45.81 | 0.75KW | 31.0rpm | 225N.m | 52kg | 13000N | 3.60 |
| RXF77DV80S4 | 43.26 | 0.75KW | 33.0rpm | 215N.m | 52kg | 13000N | 3.80 |
RXF77DRN80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RXF77DRN80S4 | 121.42 | 1.1KW | 12.0rpm | 890N.m | 9130N | 0.90 | |
| RXF77DRN80S4 | 102.99 | 1.1KW | 14.0rpm | 760N.m | 10400N | 1.10 | |
| RXF77DRN80S4 | 92.97 | 1.1KW | 15.0rpm | 685N.m | 11000N | 1.20 | |
| RXF77DRN80S4 | 81.8 | 1.1KW | 17.0rpm | 605N.m | 11500N | 1.35 | |
| RXF77DRN80S4 | 77.24 | 1.1KW | 18.0rpm | 570N.m | 11700N | 1.45 | |
| RXF77DRN80S4 | 65.77 | 1.1KW | 22.0rpm | 485N.m | 12100N | 1.70 | |
| RXF77DRN80S4 | 57.68 | 1.1KW | 25.0rpm | 425N.m | 12400N | 1.90 | |
| RXF77DRN80S4 | 52.07 | 1.1KW | 27.0rpm | 385N.m | 12500N | 2.10 | |
| RXF77DRN80S4 | 45.81 | 1.1KW | 31.0rpm | 335N.m | 12700N | 2.40 | |
| RXF77DRN80S4 | 43.26 | 1.1KW | 33.0rpm | 320N.m | 12700N | 2.60 | |
| RXF77DRN80S4 | 36.83 | 1.1KW | 39.0rpm | 270N.m | 12900N | 3.00 | |
| RXF77DRN80S4 | 33.47 | 1.1KW | 42.0rpm | 245N.m | 12900N | 3.30 |

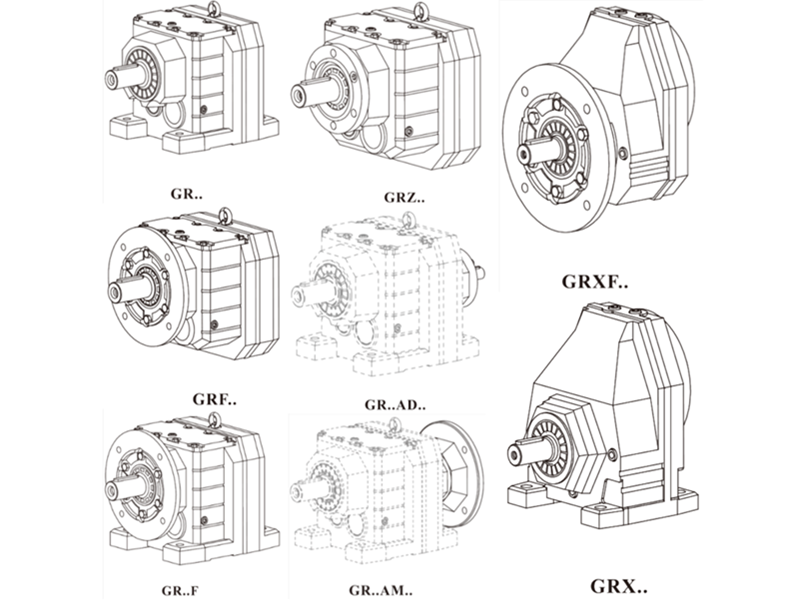

RXF77DV80S4電機減速機類型：

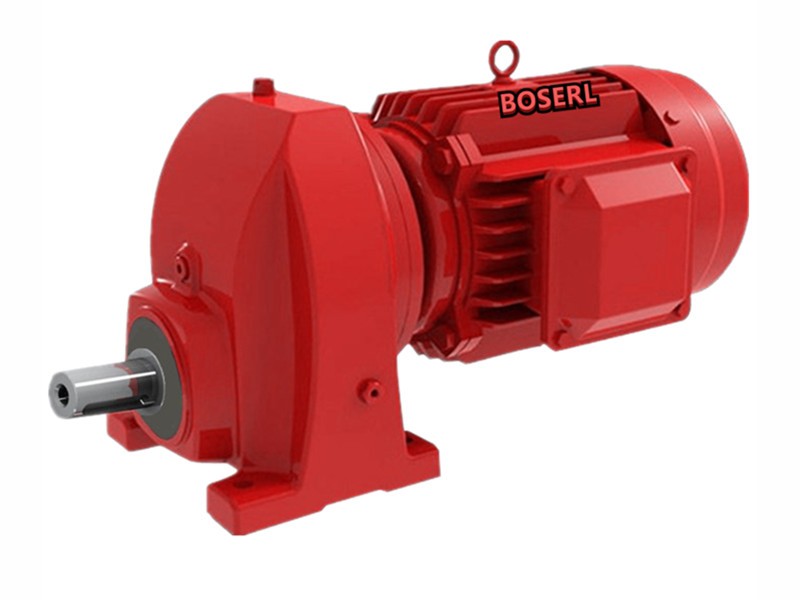

RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

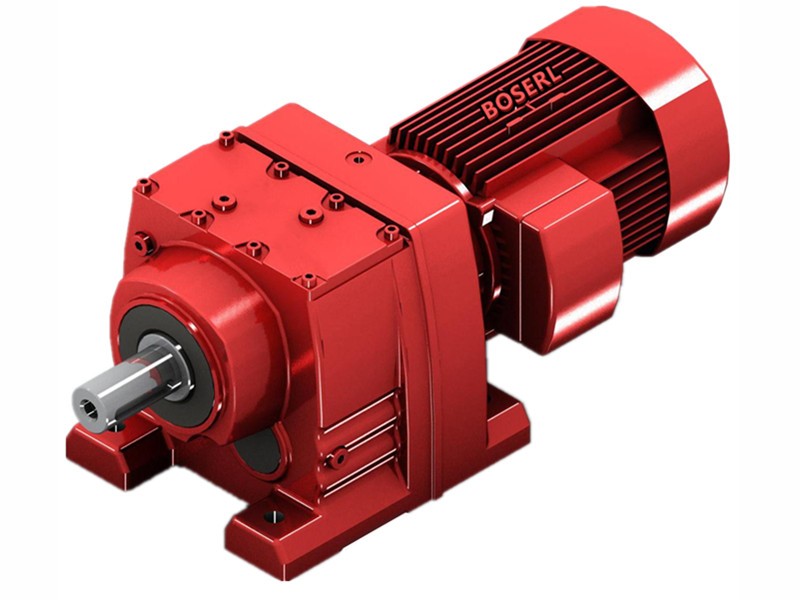

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

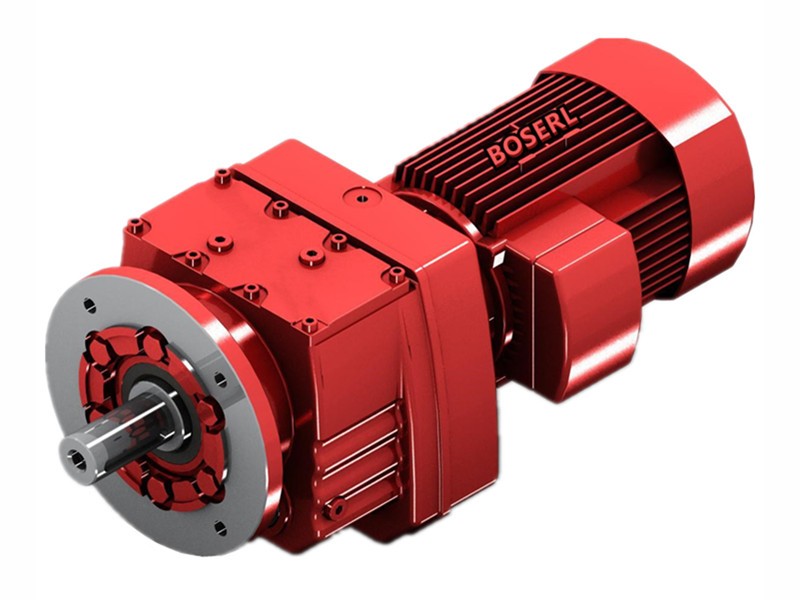

RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
RXF77DV80S4電機減速機安裝尺寸圖紙
RXF77DV80S4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
減速機電機一體化應用案例展示：
關鍵詞:減速機電機一體化一套_RXF系列減速機與電機_電動機減速器一體機_減速機電機一體機生產廠家_減速機電機一體機廠家_RXF系列減速機生產廠家_減速機電動機一體機
RXF系列減速機型號：RXF57減速機,RXF67減速機,RXF77減速機,RXF87減速機,RXF97減速機,RXF107齒輪減速機
RXF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
