S37DM71D4詳細信息
S37DM71D4
訂購熱線：13360667204
關鍵詞：攪拌39噸負載電機減速機_S37DM71D4_S37DM71MS4
S37DM71D4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| S37DM71D4 | 63.33 | 0.37KW | 22.0rpm | 103N.m | 17.5kg | 3000N | 0.80 |
| S37DM71D4 | 51.30 | 0.37KW | 27.0rpm | 101N.m | 17.5kg | 3000N | 0.80 |
| S37DM71D4 | 43.68 | 0.37KW | 32.0rpm | 87N.m | 17.5kg | 3000N | 0.95 |
| S37DM71D4 | 37.66 | 0.37KW | 37.0rpm | 76N.m | 17.5kg | 3000N | 1.05 |
| S37DM71D4 | 35.10 | 0.37KW | 39.0rpm | 71N.m | 17.5kg | 3000N | 1.10 |
| S37DM71D4 | 30.68 | 0.37KW | 45.0rpm | 62N.m | 17.5kg | 3000N | 1.20 |
| S37DM71D4 | 28.76 | 0.37KW | 48.0rpm | 59N.m | 17.5kg | 3000N | 1.30 |
| S37DM71D4 | 25.38 | 0.37KW | 54.0rpm | 52N.m | 17.5kg | 2940N | 1.40 |
| S37DM71D4 | 22.50 | 0.37KW | 61.0rpm | 47N.m | 17.5kg | 2870N | 1.55 |
| S37DM71D4 | 19.89 | 0.37KW | 69.0rpm | 44N.m | 17.5kg | 2610N | 1.20 |
| S37DM71D4 | 18.24 | 0.37KW | 76.0rpm | 41N.m | 17.5kg | 2570N | 1.30 |
| S37DM71D4 | 15.53 | 0.37KW | 89.0rpm | 35N.m | 17.5kg | 2500N | 1.45 |
| S37DM71D4 | 13.39 | 0.37KW | 103rpm | 30N.m | 17.5kg | 2420N | 1.60 |
| S37DM71D4 | 12.48 | 0.37KW | 111rpm | 28N.m | 17.5kg | 2390N | 1.70 |
| S37DM71D4 | 10.91 | 0.37KW | 126rpm | 25N.m | 17.5kg | 2320N | 1.95 |
| S37DM71D4 | 10.23 | 0.37KW | 135rpm | 23N.m | 17.5kg | 2280N | 2.00 |
| S37DM71D4 | 9.02 | 0.37KW | 153rpm | 21N.m | 17.5kg | 2220N | 2.20 |
| S37DM71D4 | 8.00 | 0.37KW | 172rpm | 18N.m | 17.5kg | 2150N | 2.40 |
| S37DM71D4 | 6.80 | 0.37KW | 203rpm | 16N.m | 17.5kg | 2070N | 2.70 |
S37DM71MS4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| S37DM71MS4 | 98.80 | 0.25KW | 13.0rpm | 108N.m | 17kg | 3000N | 0.80 |
| S37DM71MS4 | 86.36 | 0.25KW | 15.0rpm | 96N.m | 17kg | 3000N | 0.90 |
| S37DM71MS4 | 80.96 | 0.25KW | 16.0rpm | 91N.m | 17kg | 3000N | 0.95 |
| S37DM71MS4 | 71.44 | 0.25KW | 18.0rpm | 81N.m | 17kg | 3000N | 1.05 |
| S37DM71MS4 | 63.33 | 0.25KW | 21.0rpm | 73N.m | 17kg | 3000N | 1.10 |
| S37DM71MS4 | 55.93 | 0.25KW | 23.0rpm | 78N.m | 17kg | 3000N | 1.05 |
| S37DM71MS4 | 51.30 | 0.25KW | 25.0rpm | 72N.m | 17kg | 3000N | 1.15 |
| S37DM71MS4 | 43.68 | 0.25KW | 30.0rpm | 62N.m | 17kg | 3000N | 1.30 |
| S37DM71MS4 | 37.66 | 0.25KW | 35.0rpm | 54N.m | 17kg | 3000N | 1.45 |
| S37DM71MS4 | 35.10 | 0.25KW | 37.0rpm | 51N.m | 17kg | 3000N | 1.55 |
| S37DM71MS4 | 30.68 | 0.25KW | 42.0rpm | 45N.m | 17kg | 3000N | 1.70 |
| S37DM71MS4 | 28.76 | 0.25KW | 45.0rpm | 42N.m | 17kg | 3000N | 1.80 |
| S37DM71MS4 | 25.38 | 0.25KW | 51.0rpm | 37N.m | 17kg | 3000N | 2.00 |
| S37DM71MS4 | 22.50 | 0.25KW | 58.0rpm | 33N.m | 17kg | 3000N | 2.20 |
| S37DM71MS4 | 19.89 | 0.25KW | 65.0rpm | 32N.m | 17kg | 2870N | 1.65 |
| S37DM71MS4 | 18.24 | 0.25KW | 71.0rpm | 29N.m | 17kg | 2820N | 1.80 |
| S37DM71MS4 | 15.53 | 0.25KW | 84.0rpm | 25N.m | 17kg | 2710N | 2.00 |
| S37DM71MS4 | 13.39 | 0.25KW | 97.0rpm | 22N.m | 17kg | 2620N | 2.30 |
| S37DM71MS4 | 12.48 | 0.25KW | 104rpm | 20N.m | 17kg | 2570N | 2.40 |
| S37DM71MS4 | 10.91 | 0.25KW | 119rpm | 18N.m | 17kg | 2480N | 2.70 |
| S37DM71MS4 | 10.23 | 0.25KW | 127rpm | 17N.m | 17kg | 2440N | 2.80 |
| S37DM71MS4 | 9.02 | 0.25KW | 144rpm | 15N.m | 17kg | 2360N | 3.10 |
| S37DM71MS4 | 8.00 | 0.25KW | 162rpm | 13N.m | 17kg | 2280N | 3.40 |
| S37DM71MS4 | 6.80 | 0.25KW | 191rpm | 11N.m | 17kg | 2180N | 3.80 |

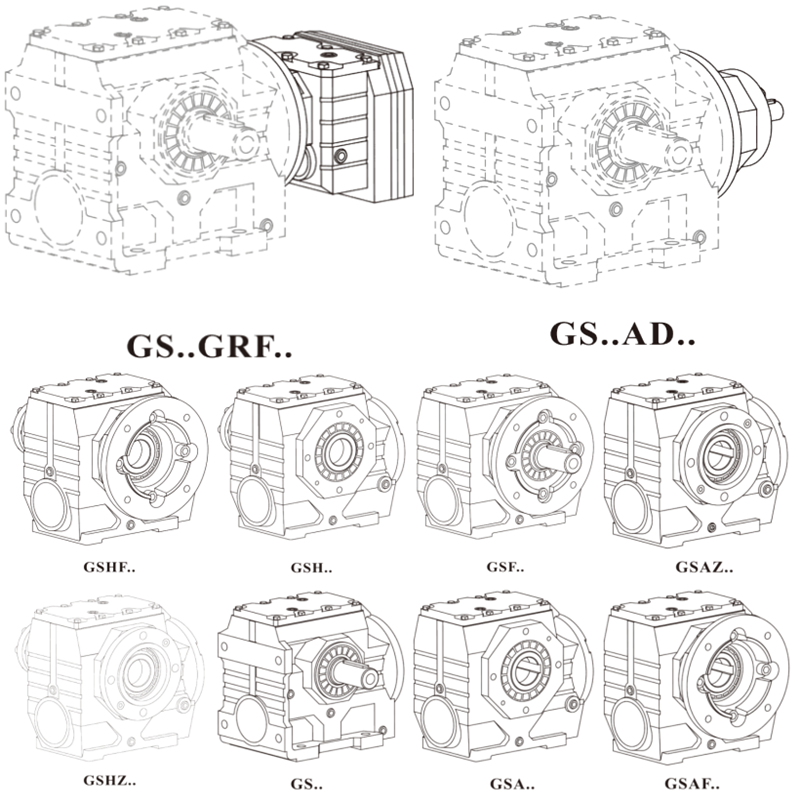

S37DM71D4齒輪減速機馬達類型：

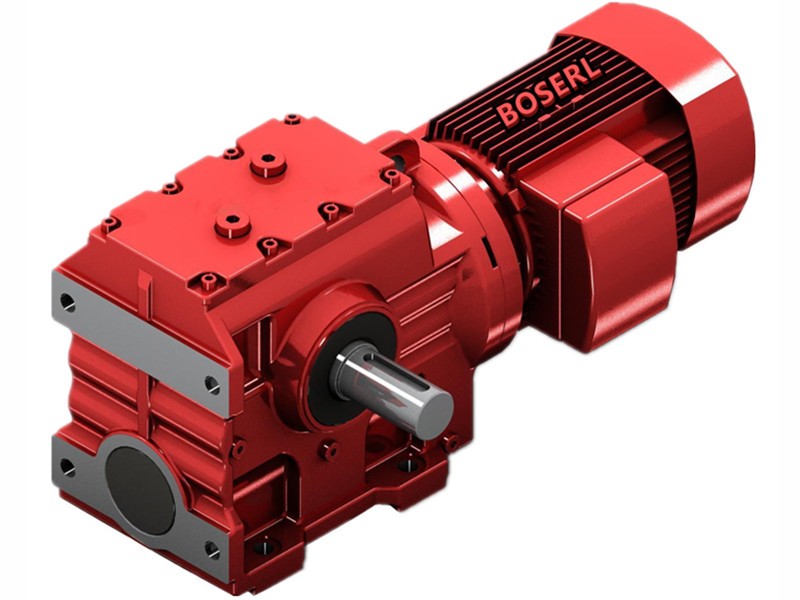

S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機

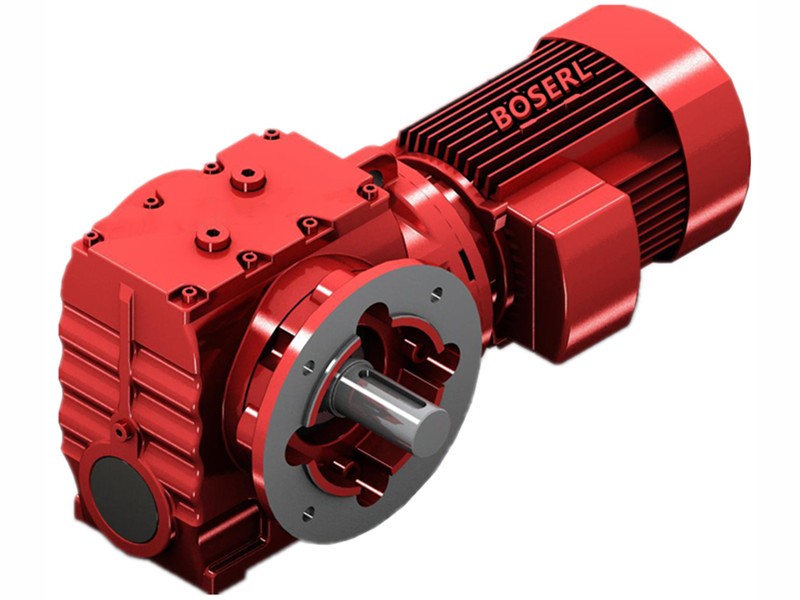

SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
S37DM71D4齒輪減速機馬達安裝尺寸圖紙
S37DM71D4齒輪減速機馬達生產工廠展示：看廠請提前三天預約
S系列減速機應用案例展示：
關鍵詞:S系列減速機_GS蝸輪蝸桿減速機電機一套_具有自鎖功能減速器與電機_有自鎖功能減速機_S蝸輪蝸桿減速機_S系列減速機生產廠家
S系列減速機型號：S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97減速機
S系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 攪拌39噸負載電機減速機 S37DM71D4 S37DM71MS4
